welcome to HISEA
Model NO.: HS-V6J
Technology: Direct Digital Synthesized Technology
Export Markets: Global
Trademark: VECANO
Origin: China
Description: Min.order for 1 set
Trade Term: FOB,CIF
Payment Term: T/T,Western Union etc....
Product description :

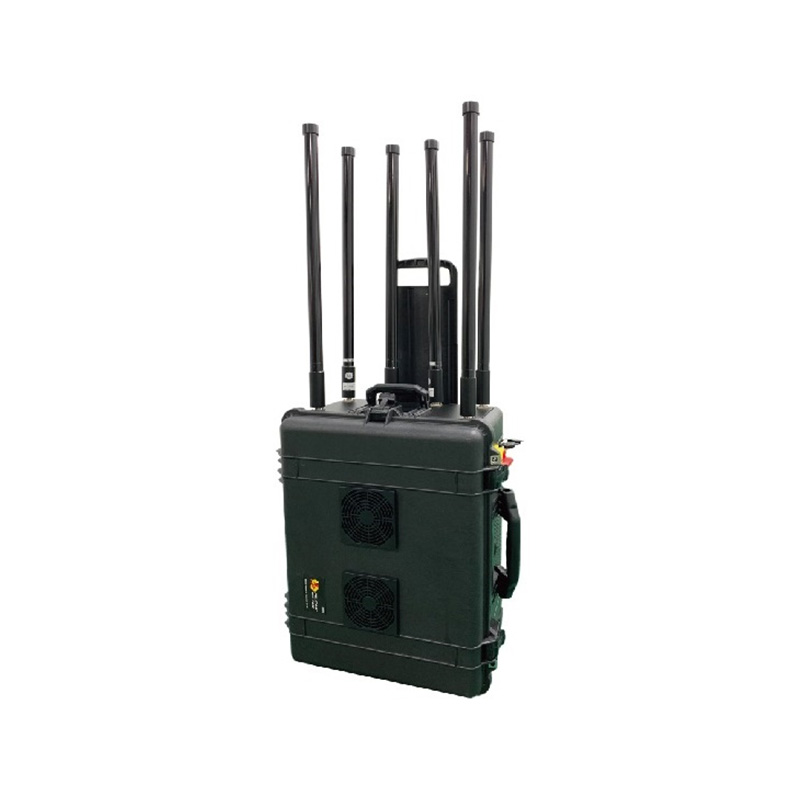

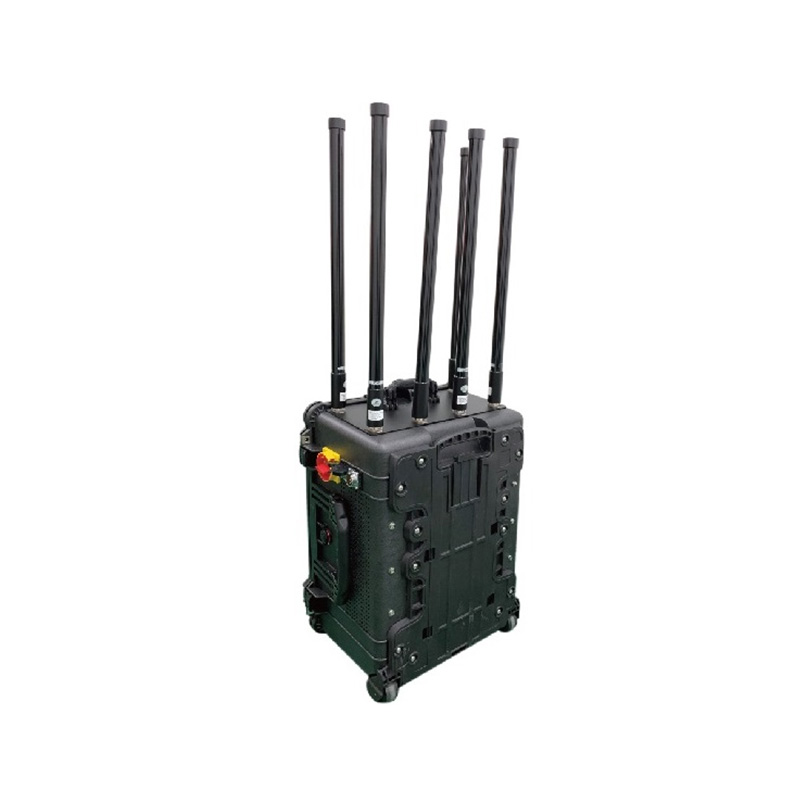

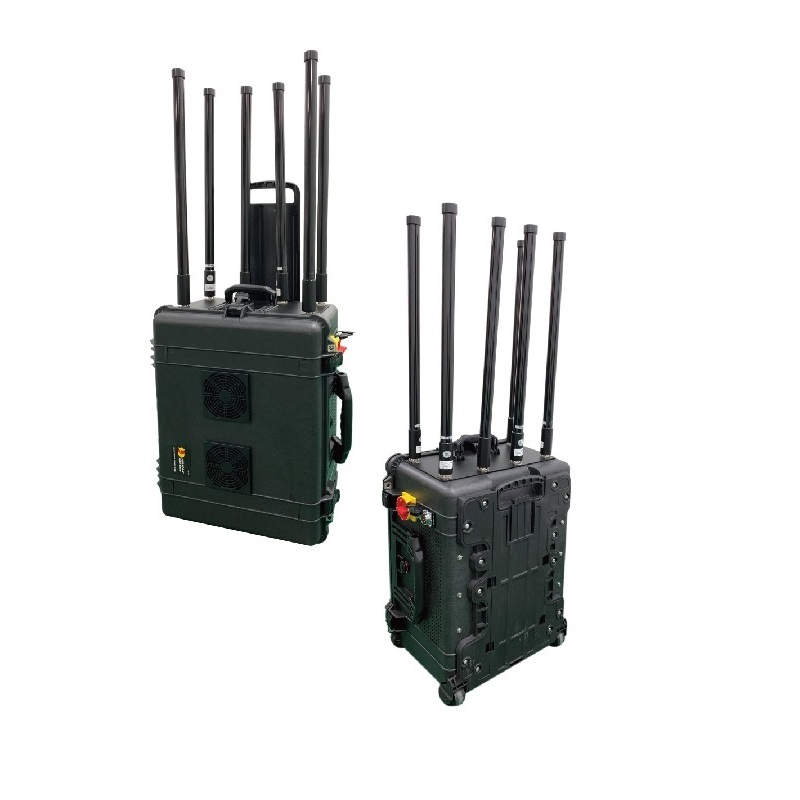

This device is not only bomb jammers, but also high power portable DDS convoy jamming system,
portable RF jammer,portable vehicle bomb jammer. This jammer can implementing the most effective
and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system.
It can cove all RF communication Frequencies between 20MHz to 6000MHz continuously and
simultaneously.
Features:
1. High-power portable multi-band jammer.
2. Field programmability for rapid adjustment frequence with output Watt.
3. Modular construction for easy maintenance,repair and upgrade.
4. Jammer up to 10 different jamming modules simultaneously,and cover up to 15-20 different frequency bands.
5. Each module with LED display to show its working frequency ,output power and etc.
6. Equipped with a remote control unit. The operator can ON/OFF each module through the wired remote controller.
7. Fully portable trolley-type case.
8. Internal battery, AC mains or DC power.
9. External LED display to indicate the batterylevel.
10. Designed with external backup battery input, adapted to external battery. Facilitating to change the battery timely for field use.
Technical Specifications:
Up to 15-20 bands for option: The frequencies can be from 20-6000MHZ
| Channel | Frequency Band MHz | Output Power (Watt) |
| Unit 1 | ||
| 1 | 20-400 | 50-100W |
| 2 | 400-800 | 50-100W |
| 3 | 800-1200 | 50-100W |
| 4 | 1200-1600 | 50-100W |
| 5 | 1600-2000 | 50-100W |
| 6 | 2000-2400 | 50-100W |
| 7 | 2400-2800 | 50-100W |
| Unit 2 | ||
| 8 | 2800-3200 | 50-100W |
| 9 | 3200-3600 | 50-100W |
| 10 | 3600-4000 | 50-100W |
| 11 | 4000-4400 | 50-100W |
| 12 | 4400-4800 | 50-100W |
| 13 | 4800-5200 | 50-100W |
| 14 | 5200-5600 | 50-100W |
| 15 | 5600-6000 | 50-100W |
Jamming Radius:the jamming radius still depends on the strength signal in given area
Dimension: 62.9 x 49.7 x 35.3 cm
Antenna Type:High Gain Omnidirectional Antennas or Directional Antenna
Packing: neutro-packing
Power supply: AC110 240V
Weight: 40kg per case
Humidity: 5-95%
Working Temp: -20ºC to +55ºC
System Protection:VSWR, Over-voltage, Over-current
System Control Software:Yes
Applicable Area:
• Mainly used in examination rooms, prisons, gas stations, mobile phone bombs, oil depots, LPG stations,
detention centers, interrogation rooms, courts,
• Reform-through-labour teams, conference rooms, movie theaters, churches, libraries, school dormitories;
• Special security and confidential occasions (confidential office, negotiation room, mobile vehicles, mobile
political and business dignitaries guarding the scene;
• All kinds of military sites and other prohibited places to use mobile phones.
