welcome to HISEA
Model NO.: HS-V5.9J
Export Markets: Global
Trademark: VECANO
Origin: China
Color: Black or Green
Description:
This High Power Full Band Vehicle Military Convoy Protection Roof Mounted Bomb Jammer System is a High Power DDS Convoy Jamming System, implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system.
It is designed for Protect military and country leaders VIP team,EOD,police investigation and arrestprisons,government buildings, wireless remote bomb and some occasions for a temporary protection to respond to some emergencies.
Basic Specifications
Jam Signal Type: broadband frequency bands, 20MHz-2,700MHz (or 20-6,000MHz)
Output Power: Total 1,100W, 50-100W each band
Jam Radius: 100-500 meters ( signal for 1,500m)
Power Supply: AC110-240V to DC27V
Cooling System: High efficiency aluminum alloy radiator+ 30X cooling fans
Working Time: Not-stop Working
Product Size: Pelican case box: 750*602*460mm（not Include Antenna）
Product Weight: appr.90kg
Package Contents: Jammer Host x 1, antenna x12, AC Plug x1, wired remote console unit x1
Output Interface | Output Frequency | RF Output watt |
CH1 | 20-80mhz | 100W |
CH2 | 80-200MHz | 100W |
CH3 | 200-500MHz | 100W |
CH4 | 500-1000MHz | 50W |
CH5 | 1000-1500MHz | 50W |
CH6 | 1500-2000MHz | 50W |
| CH7 | 2000-2500MHz | 50W |
| CH8 | 2500-3000MHz | 50W |
CH9 | 3000-4000MHz | 50W |
CH10 | 4000-4500MHz | 50W |
CH11 | 4500-5000MHz | 50W |
CH12 | 5000-6000MHz | 50W |
Advantage：
1. Output power total 1,100W,Designed with ultra broadband frequency bands, customize to 20MHz-6,000MHz

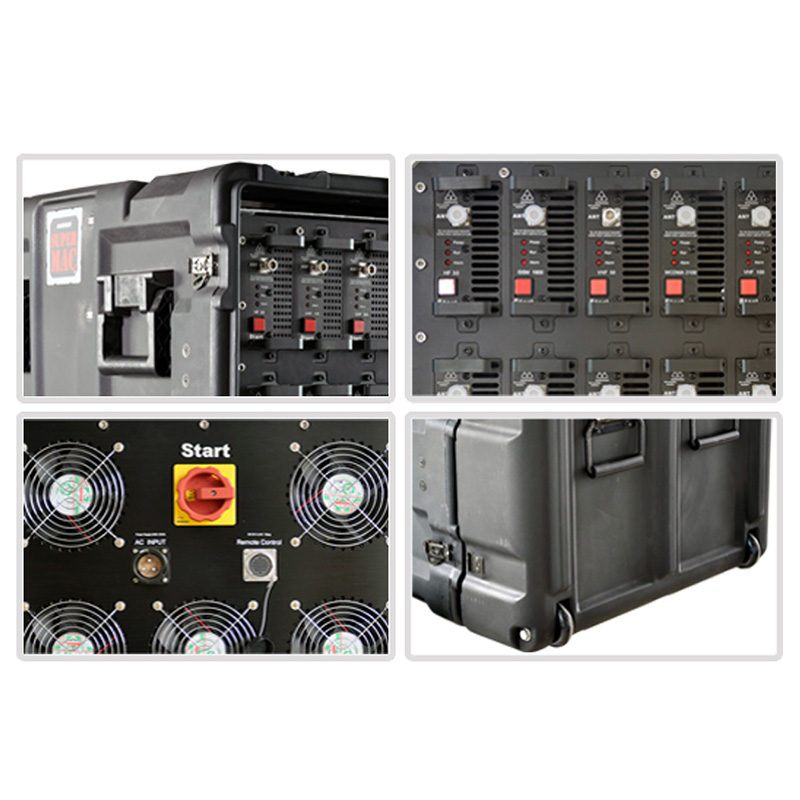

2. 12 modules plug and play design, facilitate for future power upgrading, change and maintenance. Any ruin on the modules never interfere the normal operating of other modules
3. Adjustable Output Power each Band, VSWR &Temperature over protection
4. American Mil-spec standard case, shockproof and drop-resistance, available for the vehicle running in a worse field environment
5. Up to 20 Frequency Bands. All Jamming Modules Designed by DDS technology
6. System operation can be performed in the driver’s wired remote console unit. Each module can be ON/OFF. Backup battery or generator system can be optional
7. Device body is no more than 90kg
8. Continuously and simultaneously interference to the common used RF signals
9. Integrated smart active cooling system to make sure the device working continuously
Application:
• Mainly used in examination rooms, prisons, gas stations, mobile phone bombs, oil depots, LPG stations,detention centers, interrogation rooms, courts,
• Reform-through-labour teams, conference rooms, movie theaters, churches, libraries, school dormitories;
• Special security and confidential occasions (confidential office, negotiation room, mobile vehicles, mobile political and business dignitaries guarding the scene;
• All kinds of military sites and other prohibited places to use mobile phones.
