Product Description

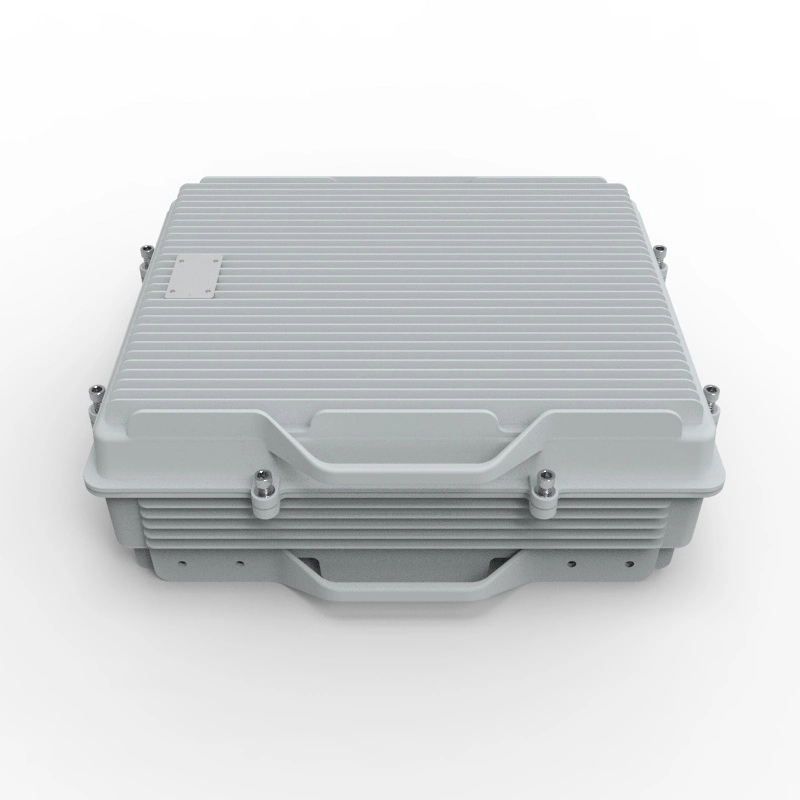

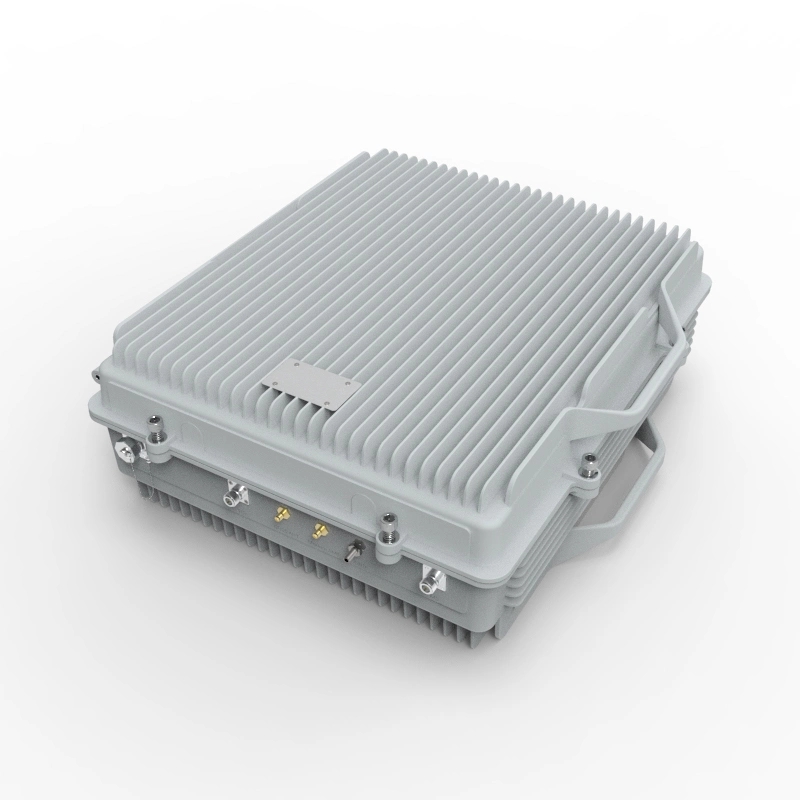

The HS-37B Fiber Optic Repeater (FOR) is designed to solve problems of weak mobile signal in the place that is far away from the Base Transceiver Station (BTS) and has fiber optic cable network underground.
The system consists of two parts: Master Unit and Remote Unit. The Master unit captures the BTS signal via donor antenna, then converts it into optic signal and transmits the amplified signal to the Remote Unit via fiber optic cable. The Remote unit will reconvert the optic signal into RF signal and provide the signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Features
Aluminum-alloy casing with IP65 protection has high resistance to dust, water and corroding;
Tx/Rx control and alarm messages can be transmitted via one fiber optic cable;
Stable and improved signal transmission quality;
One Master Unit can support up to 7 Remote Units to maximize utilization of fiber optic cable;
USB port provides a link to a notebook for local supervision or to the built-in wireless modem to communicate with the NMS (Network Management System) that can remotely supervise repeater's working status and download operational parameters to the repeater;
Application
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
Outdoor: | Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages.... |
| Indoor: | Hotels, exhibition centers, basements, shopping malls, offices, parking lots … |

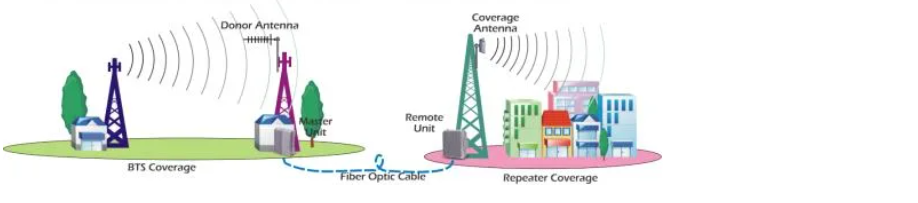

Application Diagram
Specifications
| Item | Master Unit | Remote Unit | |
| System | DCS1800MHz & WCDMA2100MHz & LTE2600MHz | ||
| Working Frequency | Uplink | 1710~1785MHz&1920~1980MHz&2500-2570MHz | |
| Downlink | 1805~1880MHz&2110~2170MHz&2620-2690MHz | ||
| Working Bandwidth | 75MHz&60MHz&70MHz | ||
| Transmission Distance | ≤20km | ||
| Maximum Output Power(RF) | 27±2dBm(Uplink) | 40±2dBm(Downlink) | |
| Maximum Gain(Wireless Access) | 90±3dB(MU+RU) | ||
| Gain Adjustment Range | 1-31dB | ||
| In-band Ripple | ≤ 6dB | ||
| VSWR | ≤1.5 | ||
| Spurious Emission | 9kHz~1GHz: ≤ -36dBm | ||
| 1GHz~12.75GHz: ≤ -30dBm | |||
| Noise Figure | ≤6dB | ||
| System Delay | ≤7μSec | ||
| I/O Impedance | 50Ω | ||

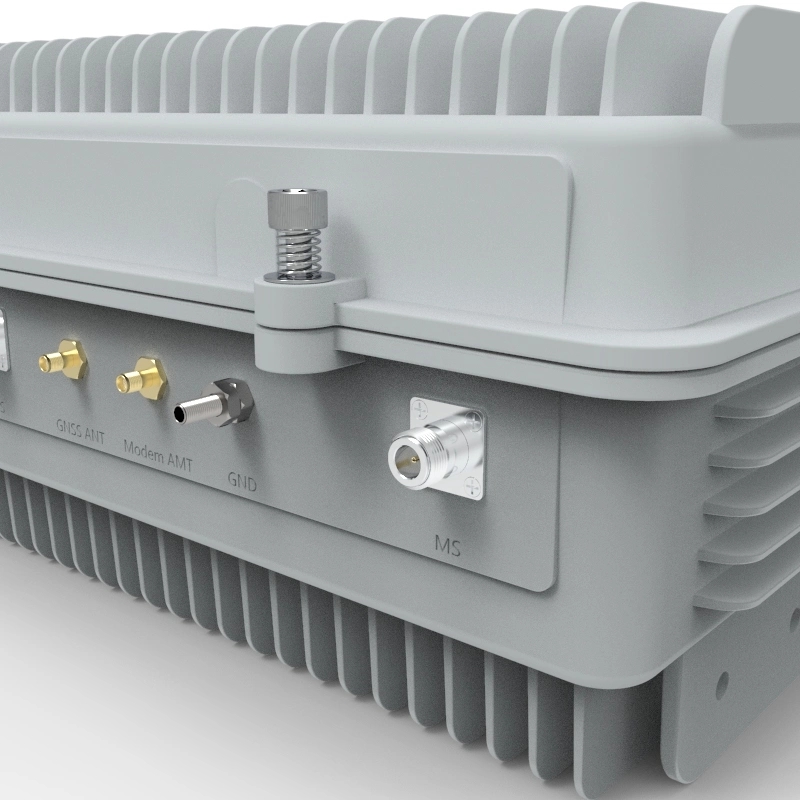

| Connector | RF Connector | 2xN-Female | 1xN-Female |
| Optic Connector | 8xFC | 4xFC | |
| Fiber Type | Single Mode | ||
| Optic Output Power | 0±10dBm(1310nm)/0±10dBm(1550nm) | ||
| Optic Receiver Sensitivity | ≤-15dBm | ||
| Power Supply | AC220V, 50Hz | ||
| Operating Temperature | -25ºC~ +55ºC | ||
| Relative Humidity | ≤95% | ||
| Application | Indoor or Outdoor(IP65) | Indoor or Outdoor(IP65) | |
| Dimensions | 418*490*215mm | 418*490*215mm | |
| Weight | ≤35kg | ≤40kg | |
| Local Monitoring | 1.USB+PC, | ||
| Remote Monitoring(Optional) | Via Wireless Modem (RJ45 for local monitoring) | ||
| NMS Monitoring Function (Optional) | Real-time alarm for door status, temperature, power supply, VSWR, etc; such as turn on/off, increasing/decreasing output power, etc; UL/DL gain, all status of repeater etc | ||
