welcome to HISEA

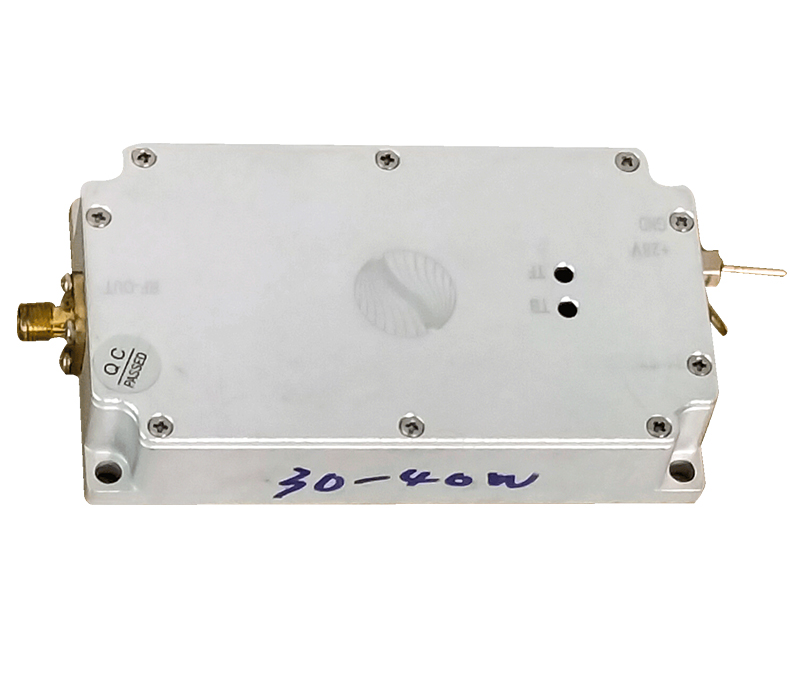

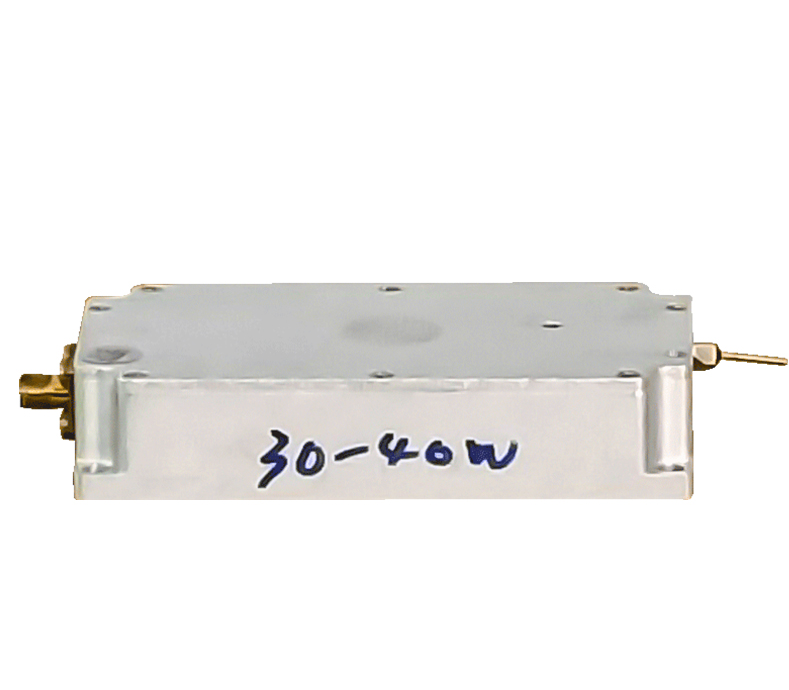

We offer the customized frequency & output power as customer need for the anti drone UAV signal jammer module
* Also, the mobile phone, WIFI, signal jammer module is offered too.433 900 1.2 1.5G WIFI 2.4G 5.2G 5.8G Anti Drone Signal Jammer Module
Indicators | Parameter |
Working frequency | 1150-1300MHz |
Gain | ≥45dBm |
Max output | ≥45dBm |
Output CW saturation power | ≥30W |
Including inside gain flatness | ≤1.5dBm |
Working current | ≤3.3A |
Output port standing wave | ≤2.0 |
Clutter suppression | ≥65dBm |
Harmonic suppression | ≥11dBm |
Rf output interface | SMA |
27V power supply port | Feedthru Capacitor / Red black wire |
Sweep frequency | 60-250KHz |
VCC Power supply reference | 24V-27V |
Max Voltage | +30V |
Weight | 0.2kg |
Installation dimensions | 89*47mm |
Overall dimensions | 95*53*20mm |
Operating temperature | -25℃ ~ +55℃ |
Installation | Installing radiator for testing of power amplifier |
