Product Description

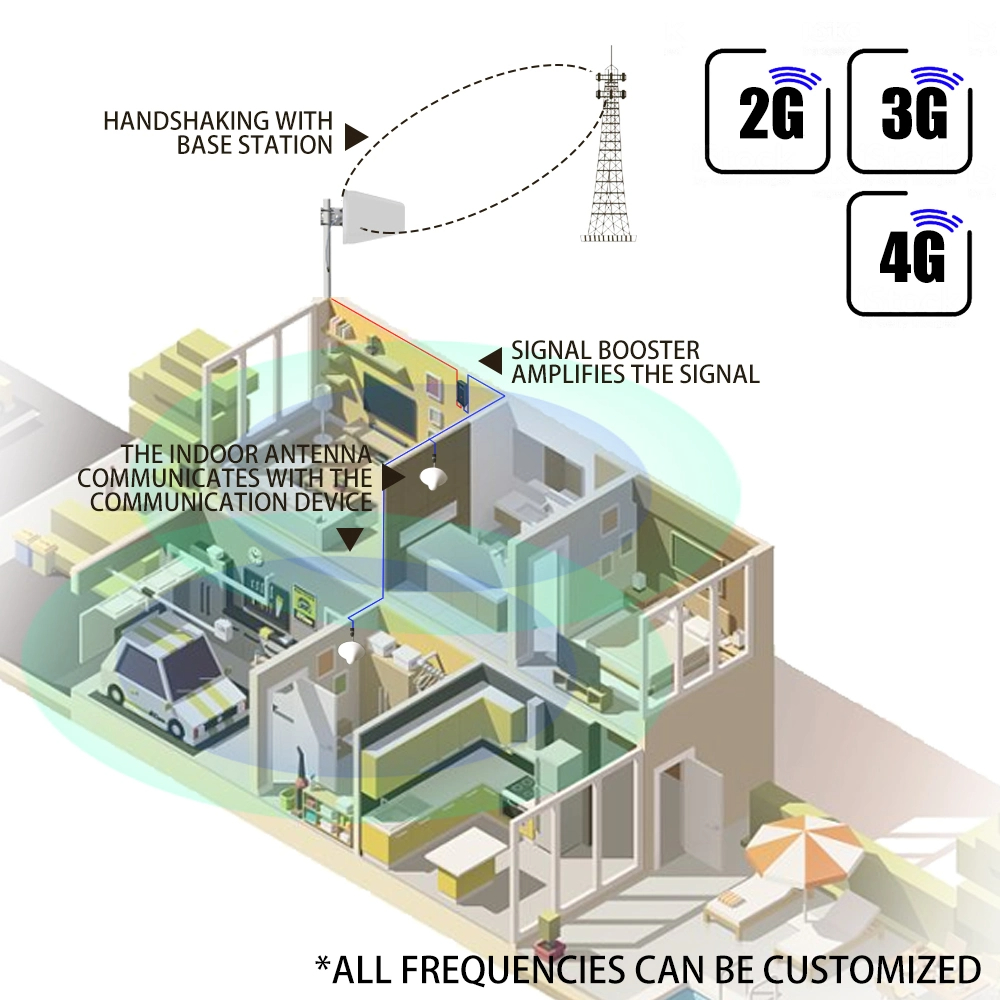

Indoor Dual Band Signal Repeater (Signal Booster) series is an ideal solution for two wireless system in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, it is easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.
The signal booster improves mobile signals with no negative impact on human health.
Features
Cost effective solution for weak signal zones, reduce drop/off calls.
Compact size, low power consumption, easy installation, great cover.
Expansion and extending of the signal of base station.
Optimization of the quality of the signal and source
Cover about 1000~5000m² without block or obstruct.
High linear design, ALC function design, low interference to BTS.
Support any cellular devices (voice & data & video)
Wide band signal booster, or customize selective band booster.
Parameters
| Frequency Range | Uplink | Downlink | |
| GSM900 | 880-915MHz | 925-960MHz | |
| DCS1800 | 1710-1785MHz | 1930-1990MHz | |
| Gain | 70dB±2dB | 75dB±2dB | |
| Output Power | 20dBm±2dBm | 23dBm±2dBm | |
| Band width | Wide Band | ||
| Manual Gain Control | 31dB / 1dB Step | ||
| ALC | >20dB | ||
| Ripple in Band | ≤ 8dB | ||
| Noise Figure | ≤ 6dB | ||
| VSWR | ≤ 2.0 | ||
| Intermodulation | ≤ -40dBc | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36dBm | |
| 1~12.75GHz | ≤ -30dBm | ||
| Time Delay | ≤ 1.5 μs | ||
| Frequency stability | ≤ 0.01ppm | ||
| MTBF | > 50000 hours | ||
| Impedance | 50 ohm | ||
| Power Supply | AC 90-264V,DC 9V/5A | ||
| Power LED | Power indicator | ||
| Alarm LED | Red | Self oscillation or Strong input signal | |
| Green | Normal | ||
| Mechanical Specification | |||
| RF Connector | N-Female | ||
| Switch | Power Switch,Manual Gain Control Switch | ||
| Cooling | Heatsink Convection cooling | ||
| Humidity | < 90% | ||
| Operating Temperature | -10°C ~ +55°C | ||
| Environment Conditions | IP40 | ||
| Installation Type | Wall Installation | ||
| Size | 268mm*58mm*189mm | ||
| Weight | < 4.1Kg | ||
Advantages

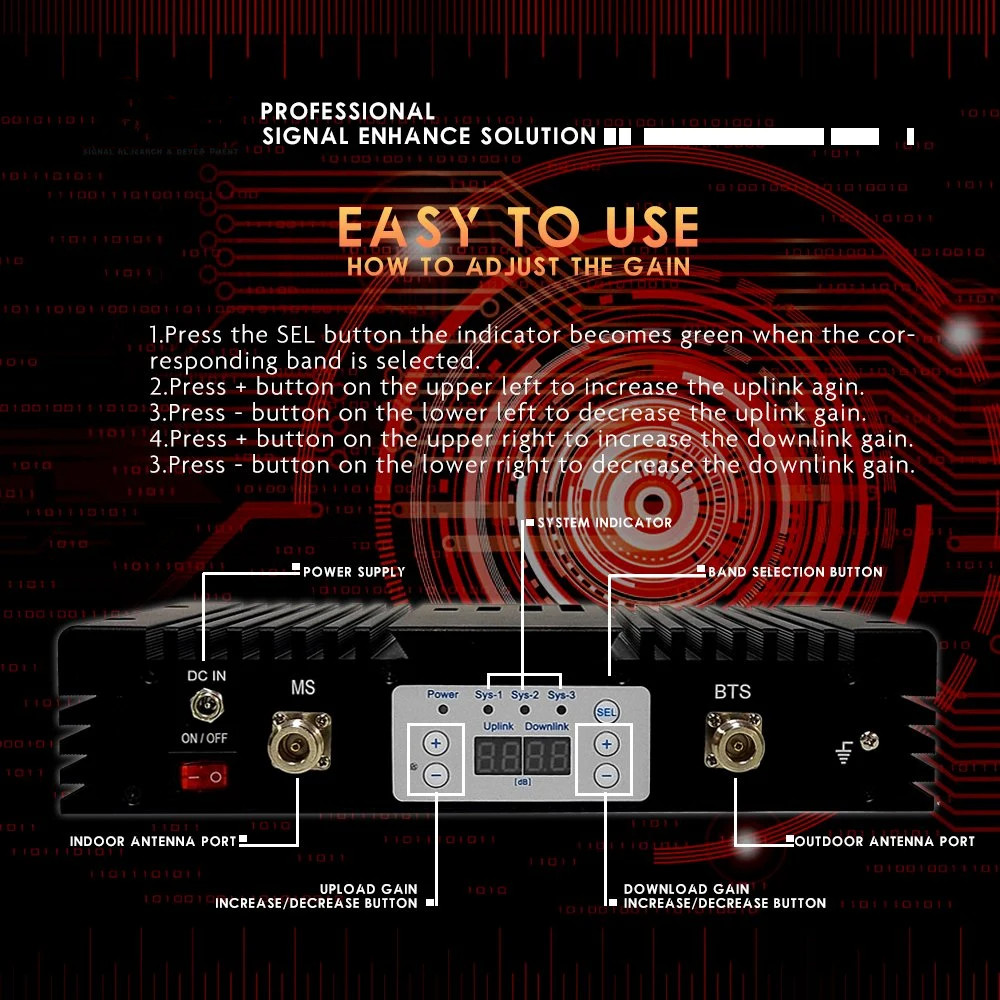

Digital Display Panel, Intelligent mode setting
Smart function called which can be activated via the digital display panel.
Users can choose gain and working system by LCE Digital Panel.
Set the technical parameters simple and efficient, this is easier than DIP Switch.

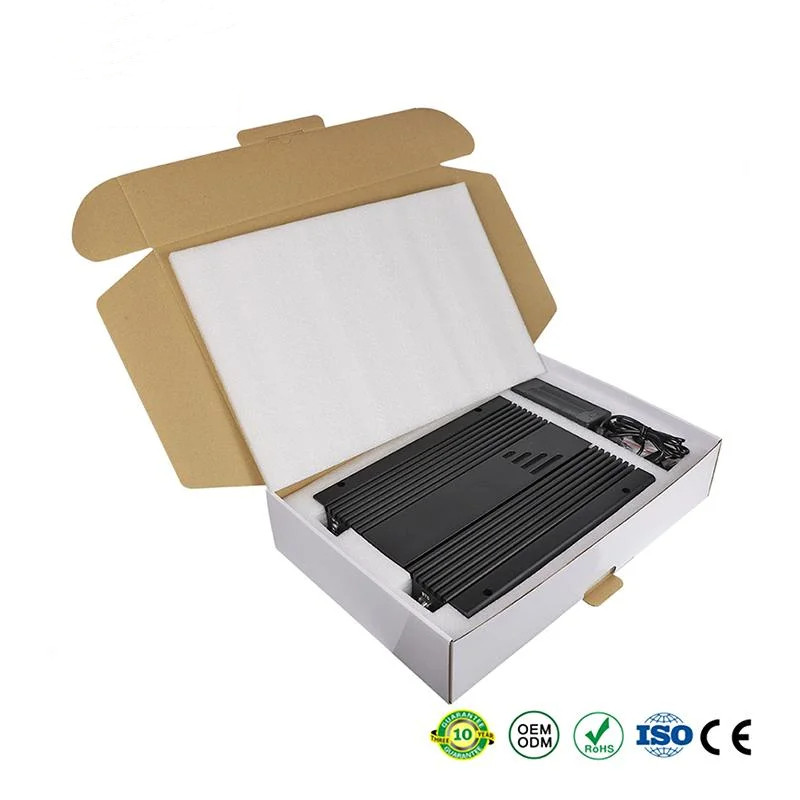

Standard Package
1) AC90-264V, DC9V/5A power supply adapter 1PCS
2) AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS
Demonstration of working principle:
The booster is fixed onto the wall through expansion bolts.
A. Drill holes in the selected place and install expansion bolts.
B. Align the holes with the expansion bolts, place flat washers, spring washers, and nuts in turn, and tighten the nuts to fasten the installing support.
C. Place the booster on and fasten it.
D. Connect cables and power cables to the booster respectively.
E. After installing the booster as described above, power on the booster to check the operation status.
Connection:
A. BTS Port: donor antenna cable is connected with Outdoor Port;
B. MS Port: service whip antenna is connected with Indoor Port;
C. DC IN: connected with Power adaptor.
Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, Shop.etc.
