welcome to HISEA
The HS-DD01 portable drone detector is a briefcase style drone detection device for drone monitoring.
It is used for monitoring drone information such as SN code, model, location (longitude/latitude, azimuth, distance), speed, height, altitude, home spot,controller location(longitude/latitude, azimuth, distance) etc.
It works offline or online (optional). It is easy to carry, deploy, and use via touch screen,it is suitable for drone monitoring in scenarios such as major events, daily security patrol, VIP secret service, critical infrastructure etc. It works offline or online, with option to connect multiple devices to cover large area.
Functions:
* Droned detection and identification: HS-DD01 can detect and identifie various brands drones such as DJI ,AUTEL, as well as WiFi drones, FPVs, some DIY drones;
* Trajectory tracking and display: HS-DD01 real-time flight trajectory of the tracked drones can be displayed on the GIS map;
* Pilot/Remote controller position display: The position of the pilot (remote controller) can be fined and displayed, and the location information will be updated in real time;
* Drone detailed information monitoring: The detailed information of drones and pilots can be displayed in real time, including: drone ID, frequency, latitude and longitude, model, altitude, height, pilot latitude and longitude, distance between the device and the pilot (or the distance between the drone and the reference point) and other information;
* Sole identity: For each drone,it can identify its unique S/N number;
* Black and white list: Distinguish between “friend” and “foe”,it will not alarm when a “friend” drone is detected, a “friend” or “foe” can be tagged (only support DJI series drones);
* Intrusion alarm: When the device detects a drone intrusion, an audible and/orvisual alarm is performed;
* Map operation: Support online map and offline map;
Specification:
Product name | Portable Drone Detector |
Frequency | 900MHz、1.2GHz、2.4GHz、 5.2GHz、5.8GHz |
Freqency Range | 10-6000MHz |
Range | 1-10km (varies due to environment and drone models) |
Swarm detection | ≥10 concurrent drones |
Language | Arabic,English,Russian,France,Chinese |
Target | DJI, AUTEL, FIMI, YUNEEC, HUBSAN, FPV and racing drone models |
Waterproof Level | IP65(Case closed) |
Work Temperature | -20℃~65℃ |
Working Time | 4 hours (running at 20°C) |
Weight | 20kgs |

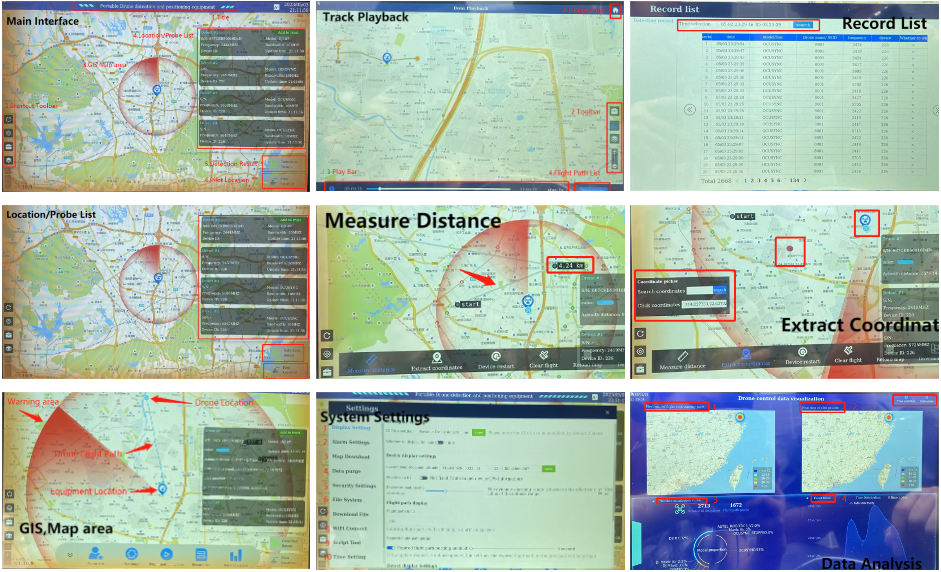

System Introduction:
Application:
1. Government: VIP convoy, Prison, Court, Military, Police
2. Infrastructure: Petrol Station, Oil Depot, Gas Station, Airport, Drug rehabilitation centers, Security agency
3. Public&Events: Stadium&Events, Important Outdoors Meetings
4. Transportation: Port&marine, Super yachts
5. Detention Centers, School,Theatre,Church, Hospital
