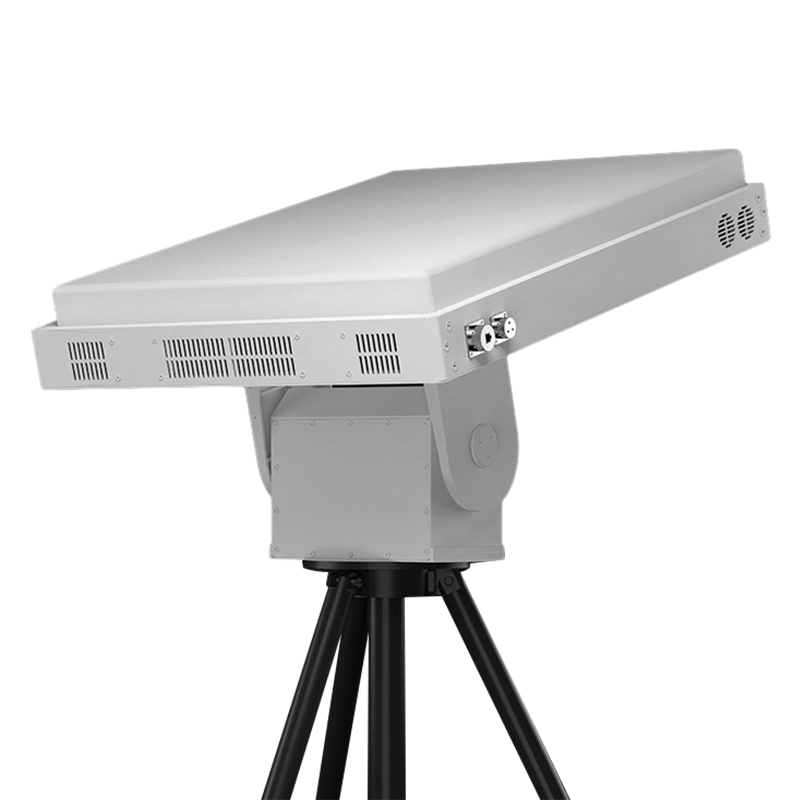

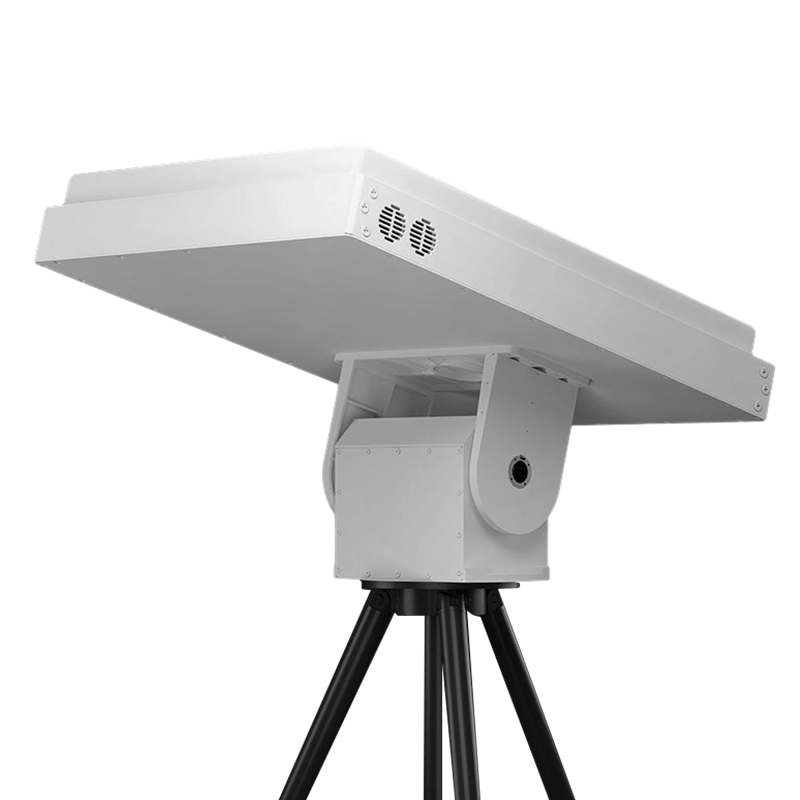

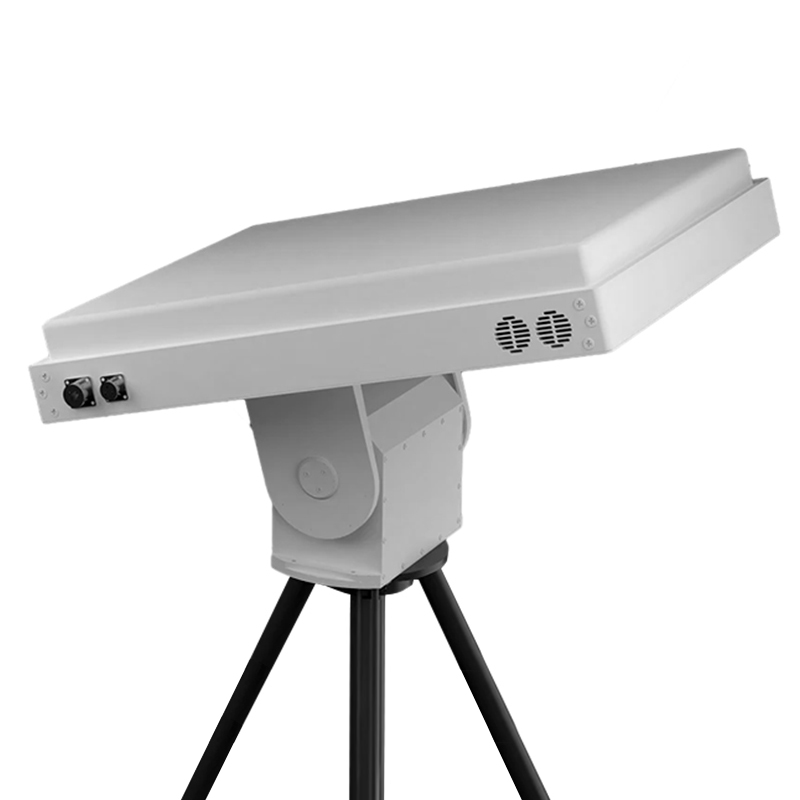

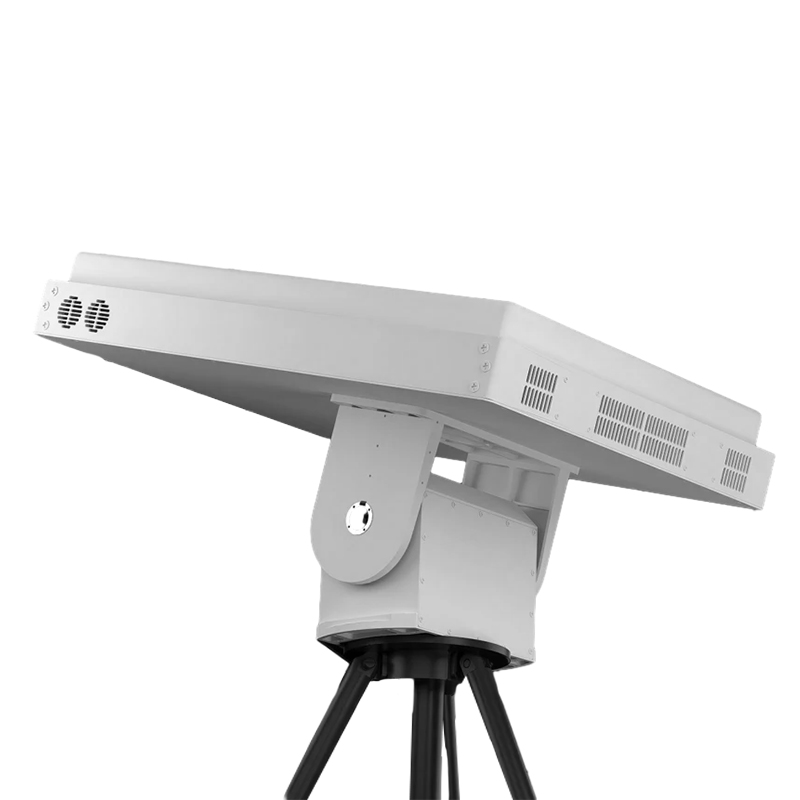

The R series Low-altitude Detection Radar is a detection equipment in drone defense field, which is designed with phased array system, allowing quick search, tracking, recognition, alarm of UAVs and UAV swarms. The drone radar supports comprehensive detection of path of multiple targets, and customization of photoelectric tracking, recognition system. An automatic unattended mode is also available.
Product Features
(1) 2D phased array plus three-dimensional radar, especially designed for UAV with RCS=0.01㎡

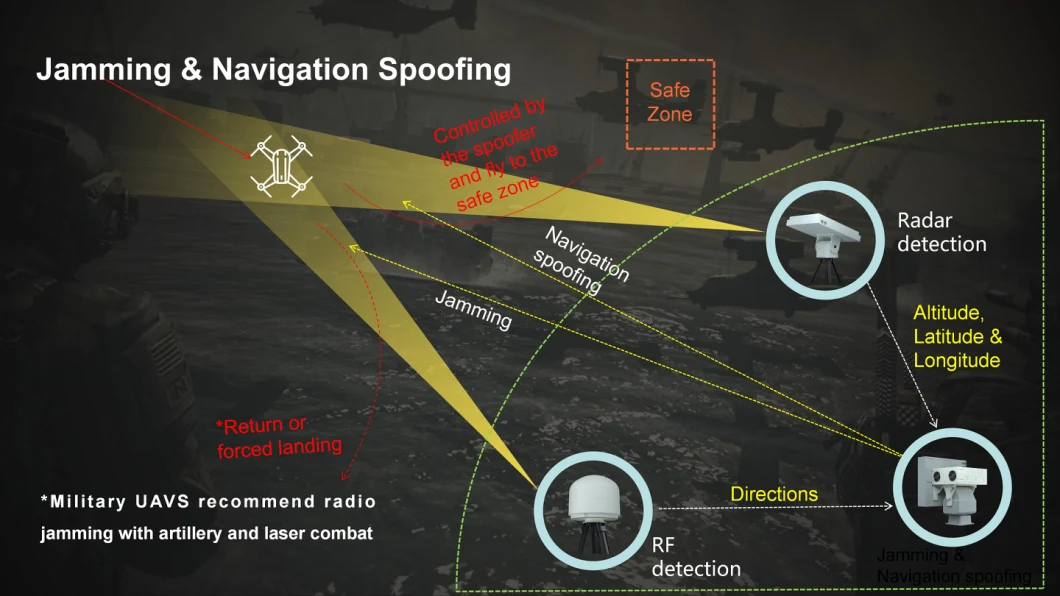

(2) High accuracy of detected target position, horizontal and vertical error < 0.2 degree, thus may guide long-distance HD camera to precisely capture target, high power microwave to strike the equipment, high power laser to strike the equipment, navigation spoofing equipment and other anti UAV equipment.
(3) Micro-Doppler detection capability, able to detect hovering and start-flying UAVs
(4) Ku band providing not only high accuracy, but also eliminating electromagnetic interference in sensitive environment such as airport
(5) Lightweight equipment, easy set-up and withdrawal by a single person
Performance Parameter
No. | Standard | Parameter |
1 | Frequency | KU |
2 | Working frequency | 16GHz |
4 | Scanning mode | E-scanning (vertical) Mechanical scanning (azimuth angle) |
5 | Antenna peak power | < 450W |
6 | Radar average power | < 500W |
7 | Maximum range | ≥ 6KM (RCS = 0.01m2) |
8 | Minimum range | ≤ 200m |
9 | Data speed (mechanical scanning speed) | 2s |
10 | Azimuth angle | 360° |
11 | Angle of altitude | Search mode: 30° |
13 | Deployment time | ≤ 5min |
14 | System reliability | ≥ 10,000 hours |
15 | System maintainability | ≤ 1 hour (MTTR) |
16 | Environment condition | Storage temperature : -50°C - 70°C Working temperature: -40°C - 65°C Working humidity: 95% ± 3% @ 30°C |
17 | Speed range | 1 - 120 m/s |
18 | Range accuracy | 6 m |
19 | Azimuth angle accuracy | 0.3° |
20 | Height accuracy | 0.3° |
21 | Speed accuracy | 1 m/s |
22 | Detection probability | 85% |
23 | Miss-alarm rate | 10 - 6 |
24 | Multi-target detection | Support |
25 | Number of targets detected at the same time | ≥ 200 |
26 | Network connection | Support |
27 | Output protocol | UDP |
29 | Weight | Radar: 50kg Turnrable: 30kg Total weight: 80kg |
30 | Antenna dimentions | 690mm*460mm*130mm |
31 | Turntable dimensions | 286mm*240mm*290mm |
32 | Protection level | IP66 |
Product Use
(1) This equipment is suitable for UAV detection in oil and gas depots,.
(2) Can be used in chemical parks, prisons and government sites.
(3) Can be used for security of large-scale events.
