welcome to HISEA
With the increasing popularity of uavs, similar incidents occur frequently. The company develops and manufactures its own UAV Jammers, which are designed to jam and shield against all signals, including: BEIDOU GLONASS Galileo; At the same time, it can shield the frequency band of ISM 2.4G and ISM 5.8G, which are commonly used by UAV, and force UAV remote control, image transmission and positioning, signal interruption, to achieve the function of forced landing/return/hover, jamming distance is long, the open ground is larger than 1500 meters.
Product functional advantage
➢Independent Research and development, production, reasonable price, sufficient power. Cut off all signal communication between the drone and its controller.
➢The drone's remote control has failed. The UAV ground controller can not receive aerial video and picture.
➢The drone can not be located, forcing it to land, hover or turn back.
Technical parameters
✔Product name: Portable UAV control equipment;
✔Product model: HS-G8057;
✔Power supply: 2pcs Lithium Battery 27V/5000mAh, external charger;
✔Operation Mode: single-hand or two-hand operation, can be arbitrarily open three frequency bands;
✔Display mode: 3.5 inch LCD screen, display frequency, working state, battery capacity, temperature, humidity; cooling mode: air-cooled;
✔Interception Mode: forced return,forced landing,hover,chart transmission interference; Interception channel: four channels;
✔Antenna: built-in;
✔Control distance: open field ≥1500 m;
✔Weight: about 4 kg (without charger) .
✔Size: 60*25*6cm (handle is removable)
✔Support band:
| Channel | Frequency Range | Output Power |
| L1&Glonass L1&BEIDOU | 1560-1620 MHz | 30W |
| L2&Glonass L2&BEIDOU | 1100-1300 MHz | 30W |
| 2.4Gremote control and data transmission | 2400-2500 MHz | 30W |
| 5.8Gremote control and data transmission | 5725-5850 MHz | 10W |
Product Pictures
 |  |  |

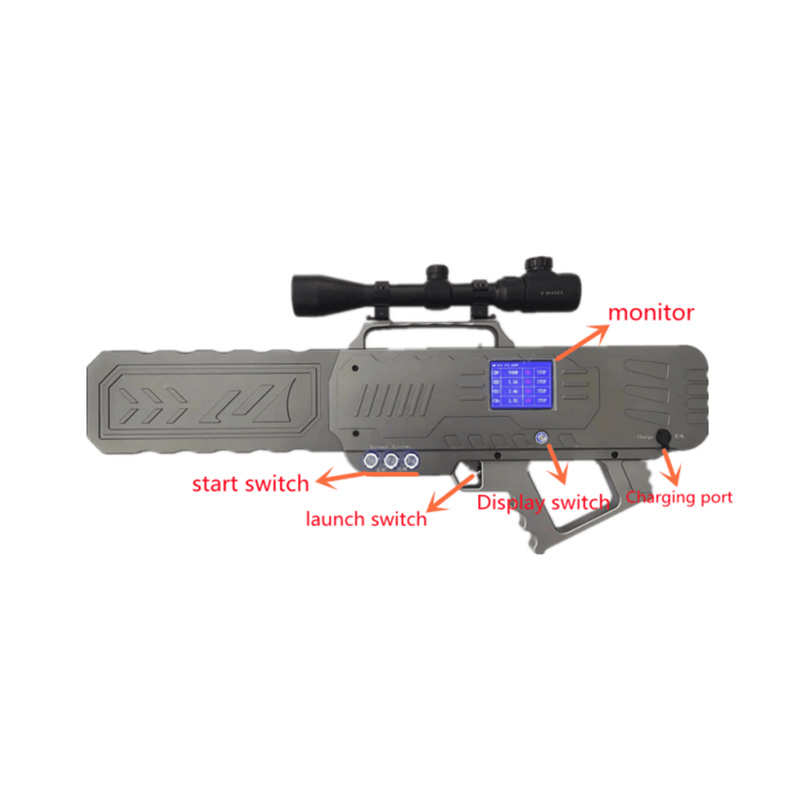

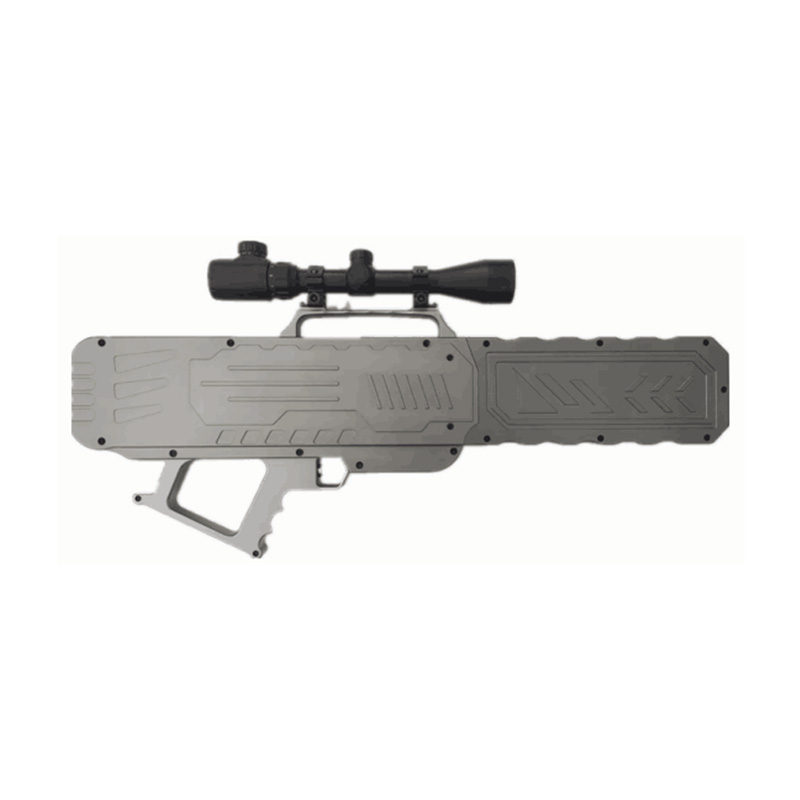

| *Figure 1: Overall Figure 1 | *Figure 2: Overall Figure 2 | *Figure 3: Diagram of the airbox |
