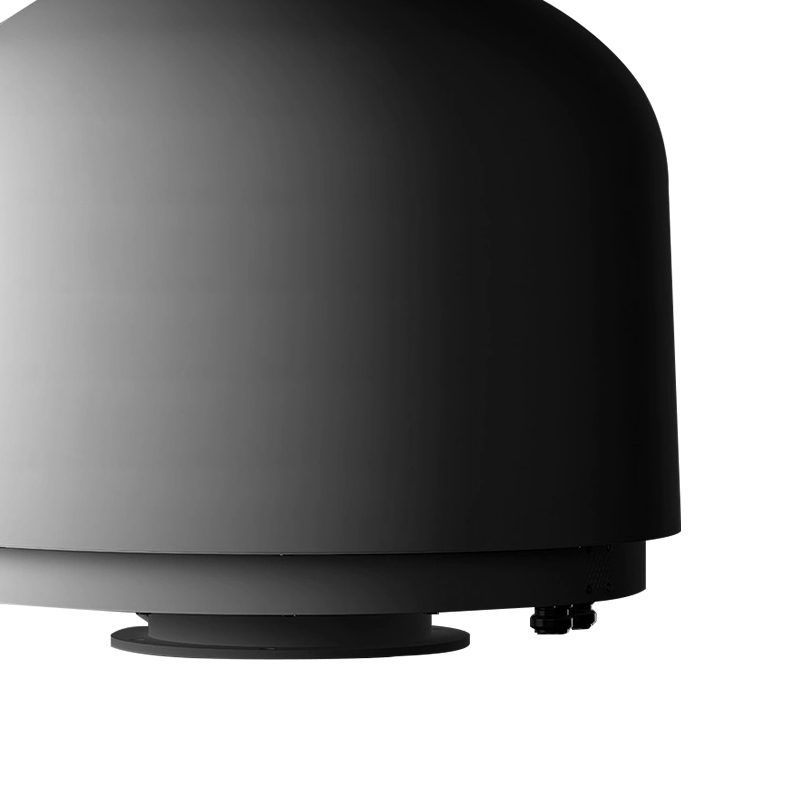

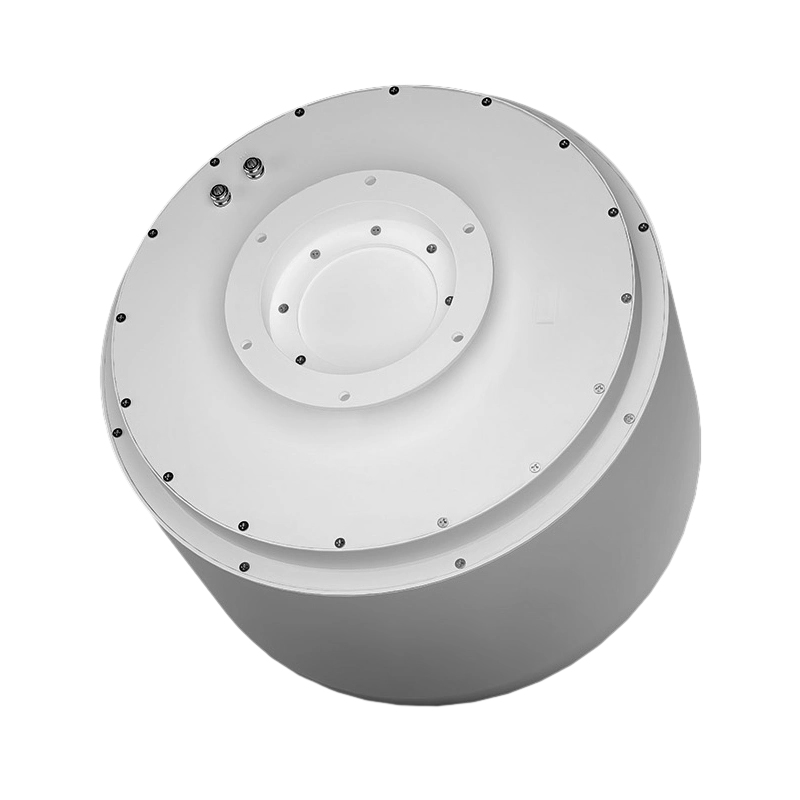

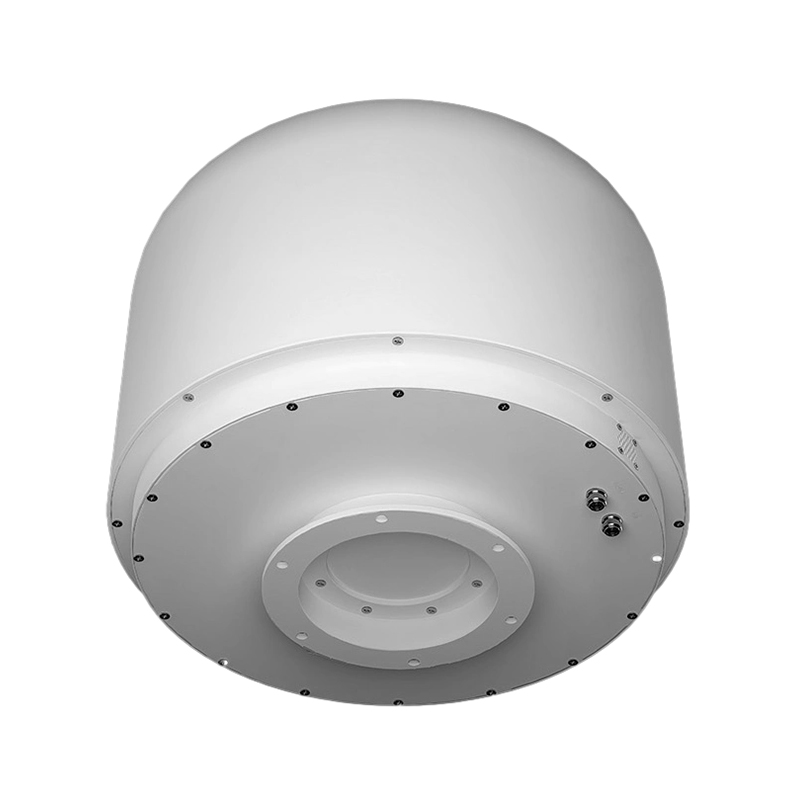

Full band UAV Detection Equipment is a passive/non-emitting staionary or vehicle-based RF detection product, it has a long range and a highly accurate drone detection and tracking capabilities.
Adopts an integrated design,with a set of high-frequency and low-freuquency signal detection antennas. Also it has a RF signal receiving module, IF signal pro-cessing module, AI processing module and other functional modules.
Product Introduction
Full Band Drone Directional Detector is especially designed to match the high level and high specification of defense need by military and public security. It can quickly detect and recognize UAVs within frequency range of 300MHz～6GHz, and send corresponding signal central frequency, band width, direction, target type and other information to control system. The equipment has features of quick search, long-distance detection, and high accuracy in direction measurement. It also has built-in AI learning and identification modules which allows online learning and update of drone database.
Product Features
(1) Reconnaissance and direction measurement can be conducted on high
elevation targets
(2) Long detection distance ( >8km )
(3) Spectrum search is fast (full band) and has a short detection time (≤1s)
(4) Simultaneous working of detection and anti -UAV functions
(5) Built-in AI learning and identification modules, allow real-time learning
Performance Parameter
(1) Detection frequency range: 300MHz～6GHz
(2) Direction measurement frequency range: 300MHz～6GHz
(3) Direction DF accuracy of UAV: ≤3°
(4) Valid detection and direction measurement distance: ≥8km
(5) UAV detection speed: ≤2s
(6) Maximum number of detected targets: ≥20
(7) Data query response time: ≤1s
(8) Equipment capacity: ≤150W
(9) Equipment dimensions: diameter 650mm* height 450mm (mounting frame excluded)
(10) Unit weight: ≤25kg
(11) Electromagnetic compatible with GJB 151A-1997
(12) Environmental adaptability:
(a) Vibrate: Compliance with the provisions of A.2.3.10.2 in GJB150.18A-2009, C.3 frequency 5-500hz, vertical 2.2grms, horizontal 1.62grms, longitudinal 2.05grms, each axis 30min;
(b) Lash: Compliance with the provisions of 7.2.1.2 in GJB150.18A-2009, half sinusoid wave’s peak acceleration: 20g, duration: 11ms, number of times: triaxial six-phase, 3 times each phase, 18 times in total
(c) Temperature: -40℃～70℃; storage temperature: -45℃~75℃
(13) Protection level: IP65
Product use

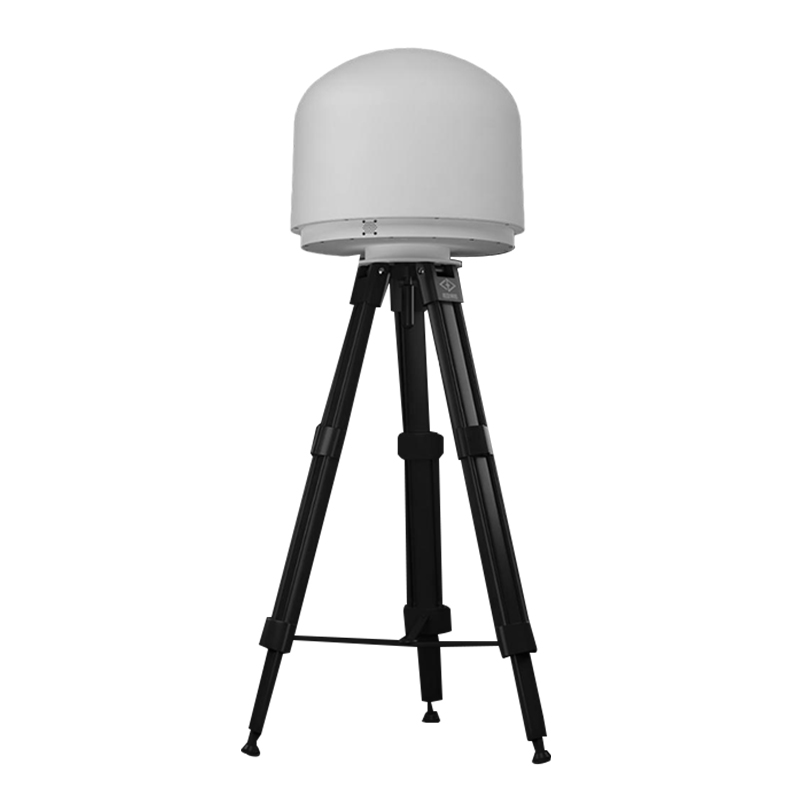

(1) The equipment fits in mobile deployment, vehicle deployment and fixed deployment.
(2) Could be applied to air defense or accompanied air defense.
(3) Can be used alone or integrated with other anti UAV equipment.
