Signal repeater is an effective equipment which designed to pick up the outdoor reception from service provider"s cell phone tower and amplify it.
Product Description

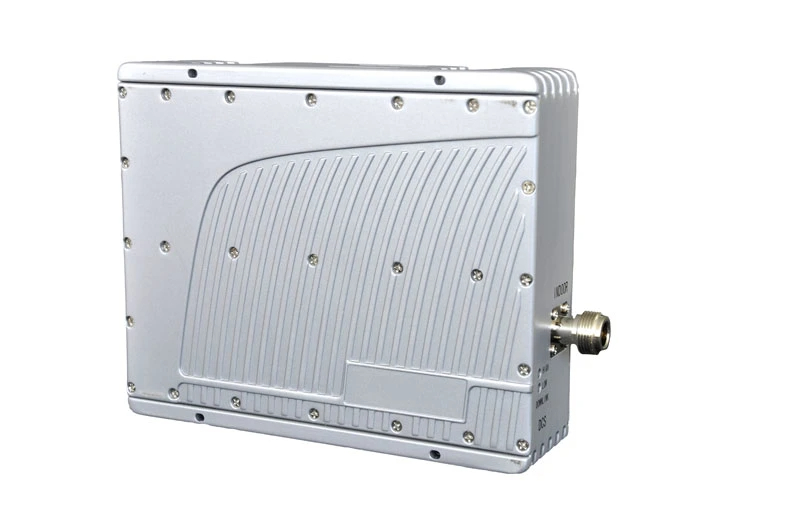

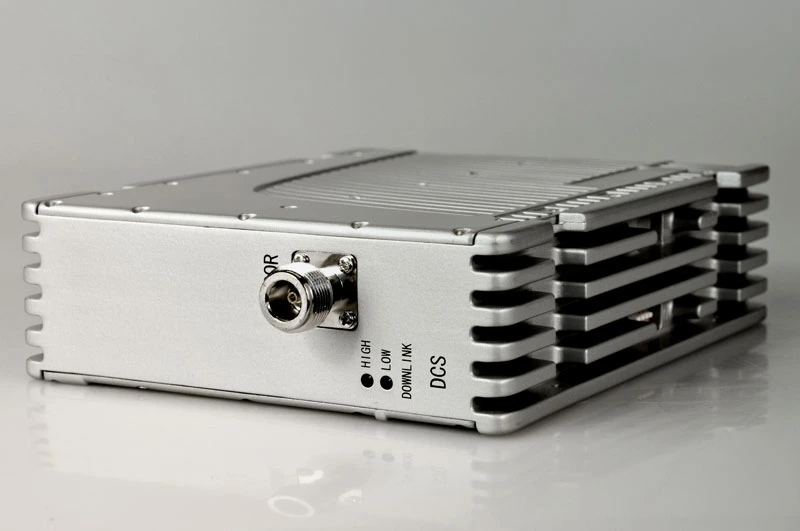

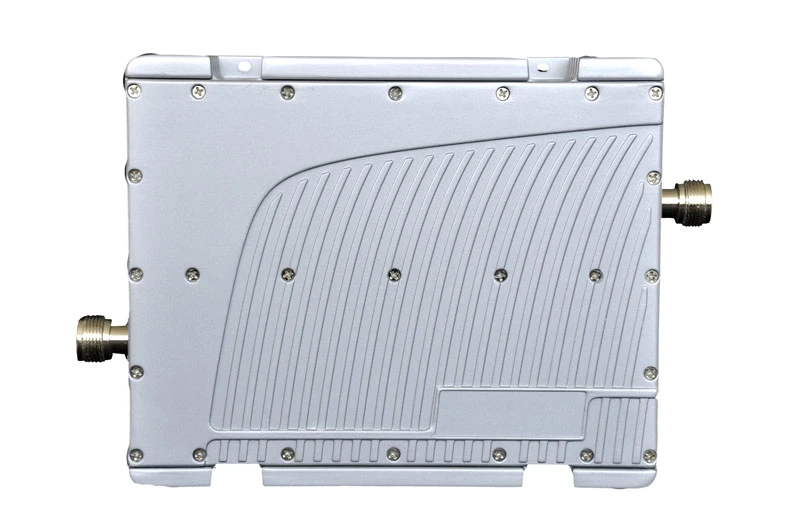

Model: HS-21B
Frequency range: WCDMA 2100；
Coverage: 1000m2；
Ambient temperature: -10ºC~50ºC；
Reliability : To the GB6993-86 standard；
Repeater Function
Fully integrated 2100 MHz antenna system；
Powerful amplifier enables up to + 85 dB of signal gain including cable loss；
Intelligent signal processing and real time adaptive operation；
Automatically adjusts power levels as needed to ensure a consistent coverage footprint；
Reprogrammable (in the field) enabling spectrum or carrier reconfigurations as needed；
Auto-Trac LED diagnostics displays aid install and operation；
Patented algorithms and adaptive processing ensure our products will not interfere with other wireless ；
Approved by FCC, Industry Canada, CSA, and major North American Carriers；
Specification
* Frequency range: Up link :American 3G 1710-1780(MHz),Europe 3G 1920-1980(MHz) ； Downlink :2110-2170(MHz)；
* Coverage: Up to 1000m2 (Distance will reduced when obstacles are in the way i.e. surrounding walls)；
* Gain(dB): Up link 53；Downlink 58；
* Gain adjustable range: MGC≥30dB；
*pass band ripple:WCDMA:15 dB；
*I/0 impedance: 50V/N Connector；
* I/0 return loss: ≤- 10 dB；
*Noise igure: ≤- 8 dB ；
*Intermodulation attenuation(Po=13dBm): ≥40dBc；
*Transmission Delay: ≤0.5us；
*Guard band rejection :(BW-58dB) ≤104MHz ,(BW-60dB) ≤107MHz；
* Power supply: AC110~220V±10% 45~55Hz ；
* Dimensions: Signal Booster: 158 x 136 x 37 mm (L x W x D)；
*Reliabiity: To zhe GB6993-86 standard；
*Electromasnetic compatibility: To zhe ETS300 694-4 standard；

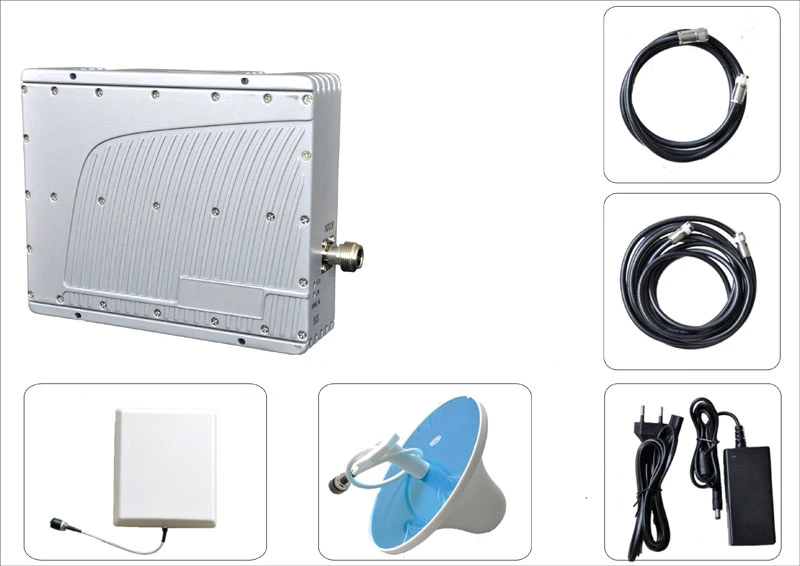

Package Contents
* Cell Phone Signal Booster
* Indoor Antenna
* Outdoor Antenna
* Power Adapter
* Coaxial Cable 2M
* Coaxial Cable 10M
* Indoor Antenna Accessories and Screws
